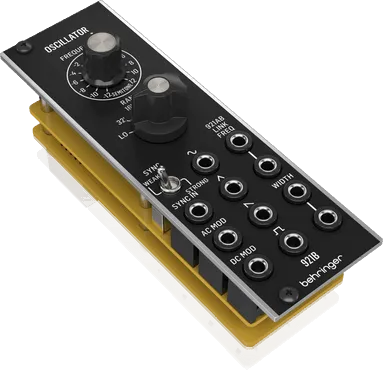

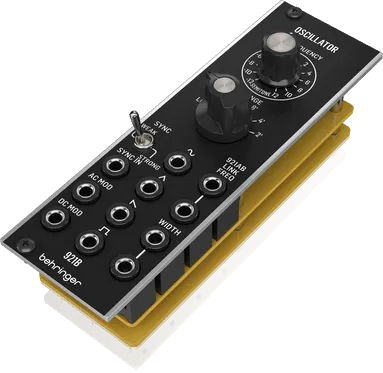

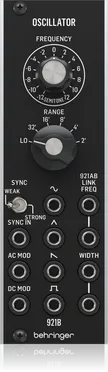

Behringer 921B Oscillator Eurorack Module

The Behringer 921B OSCILLATOR is filled with vintage grit and old-school growl. This straightforward all-analog VCO simultaneously outputs sine, triangle, sawtooth, and square waveshapes, and it includes two CV inputs for pulse width modulation and AC-Coupled and DC-Coupled inputs for frequency modulation. Sync in with selectable weak and strong modes lets you slave the 921B to another oscillator for deep waveshape manipulation. Just like the original unit, the 921B is not a standalone unit and requires a Behringer 921A OSCILLATOR DRIVER. When paired, these two units generate some of the creamiest, grimiest oscillations synthesists at Zoso Music have ever heard. And, whether you’re new to Eurorack or a seasoned veteran, the Behringer System 55 modules, including the 921B OSCILLATOR, provide an affordable way to build an epic old-school modular synth that is fully compatible with any Eurorack devices.

FEATURES

• Vintage-sounding 921B VCO module from the '70s
• Controlled via the 921A OSCILLATOR DRIVE module, or may be used as a free-running LFO
• Authentic reproduction of the circuitry from the "Modular 55 & 35" Series
• Artist roster includes world's most famous pop, rock and jazz musicians
• Separate audio outs for each of the 4 waveforms: sine, triangular, sawtooth and rectangular
• Dedicated oscillator sync input, and a switch for selecting either strong or weak sync
• Parallel link jacks for frequency and width connections to 921A and multiple 921B Oscillators
• Frequency and width jacks can also be used as external I/O providing even more creative possibilities
• Eurorack specs: 8 HP, 30 mA 12 V, 45 mA -12 V

SPECIFICATIONS

• Type : VCO Eurorack Module
• Depth : 2.28" (58mm)
• HP Size : 8HP
• Power Supply : Requires Eurorack case and power supply
