TRANSCENDENT WAVEFORM ANALOGUE OSCILLATOR Model of 1955

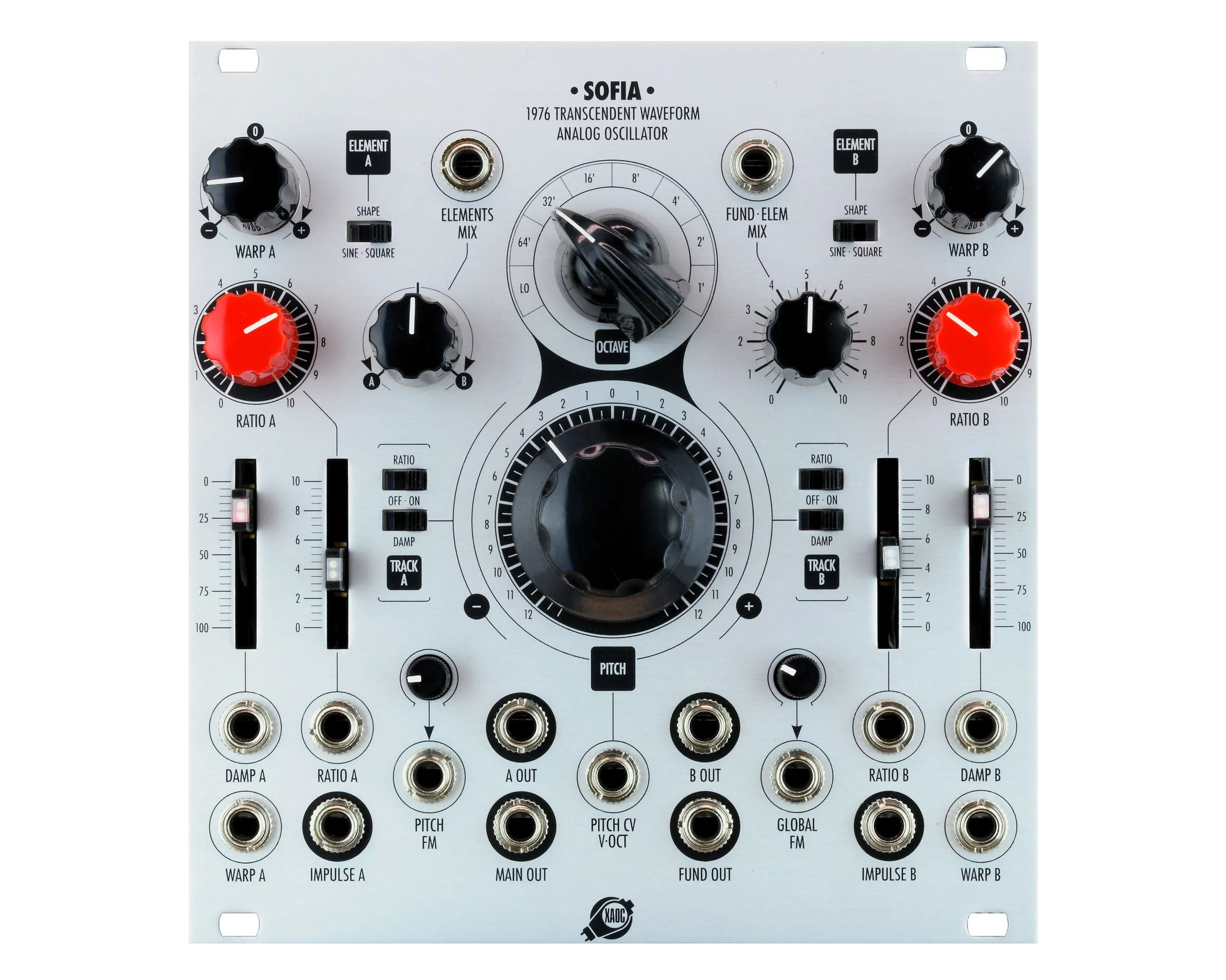

Sofia is a unique 24hp analogue oscillator based on an original waveforming principle. The sound is a mixture of a warm saturated base tone and two modulating ripple elements. A wide array of control inputs coupled with separate outputs for numerous components of the sound shaping chain allows for extensive self-patching and complex animation of the final waveform. The resulting range of possible sounds is surprisingly vast, including but not limited to: vowel-like, tearing hard-sync effect, woody pings, warm and fuzzy sine-like evolving tones with a touch of bright sparkle on top. Sofia pairs very well with filters, but it also shines with just a VCA.

• 100% analog circuity
• 2 organic sound components with extensive manual and CV control
• wide frequency range from sub audio to ultrasonic
• 3 frequency control inputs
• 8 parameter control inputs
• 6 signal outputs
• 24HP
• 30mm depth (including ribbon cable bracket)
• 12V: 90mA / -12V: 80mA / 5V: 0mA

Video:

Product Specs

• Item Number: 23211
• Make:
• Model:
• Condition:
• Finish: Silver
• Categories: ⇒
• Function:
• Made In: Poland
• MPN: XAOC-SOF
• Modular Grid: Eurorack
• Dimensions: 24 HP 30 mm deep
• Power: 90 mA 12V 80 mA -12V 0 mA 5V
