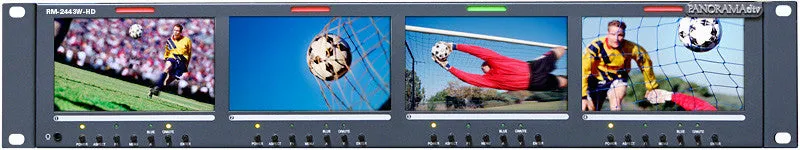

The RM-2443W-HD is designed for confidence monitoring of HD/SDSDI video with embedded audio in the production environment.

Each of the screens can display high Definition Video on a high resolution wide screen plus has meters for eight channels of audio.

Additional overlays can be added by the operator for Safe Area and Safe Title markers, Center mark, Time Code, and Display Name.

Audio and Time code are derived from embedded SDI.

The slim and light weight design provides four screens in a very compact 2 rack units, while the chassis has only 2.25 inches of depth

Features

• Rack: 2U
• Signal: HD-SDI, SD-SDI
• Channels: 4 video, 8 audio
• Controls: Buttons per screen: Power, Aspect, F1, Menu, Blue, Mute, and Enter buttons.
• Number of Displays: 4
• Display Size: 4.3"
• Display: Hi-resolution wide-screen LCD
• Display Aspect: 16:9
• Level Meters: 8x on-screen level meters
• Status Indicator: LEDs: Power, Aspect, F1, Blue, & Mute. 4x tally lights.
• Sound: Stereo speakers & 1/8" stereo headphone jack
• Power Supply: External 12V DC
• Other: Embedded timecode displayed
• Safe area and title display
• Tally input connector (1x HD-15) and lights 4x.In-monitor text display (10 char.)
• Signal auto-sense
• Only 2.4" depth
• Inputs x4 BNC
• Outputs Reclocked HD/SD x4 BNC
• Tally input connector (1x HD-15) and lights 4x.
