Name: Small 1.2\" 8x8 Ultra Bright Yellow-Orange LED Matrix"
SKU: 1465824

Home Lighting Scanner Status LEDs

$Small 1.2\" 8x8 Ultra Bright Yellow-Orange LED Matrix"$ $Small 1.2\" 8x8 Ultra Bright Yellow-Orange LED Matrix"$ $Small 1.2\" 8x8 Ultra Bright Yellow-Orange LED Matrix"$ $Small 1.2\" 8x8 Ultra Bright Yellow-Orange LED Matrix"$

$Small 1.2\" 8x8 Ultra Bright Yellow-Orange LED Matrix"$

$Small 1.2\" 8x8 Ultra Bright Yellow-Orange LED Matrix"$
$Small 1.2\" 8x8 Ultra Bright Yellow-Orange LED Matrix"$
$Small 1.2\" 8x8 Ultra Bright Yellow-Orange LED Matrix"$
$Small 1.2\" 8x8 Ultra Bright Yellow-Orange LED Matrix"$

Product Details ＋

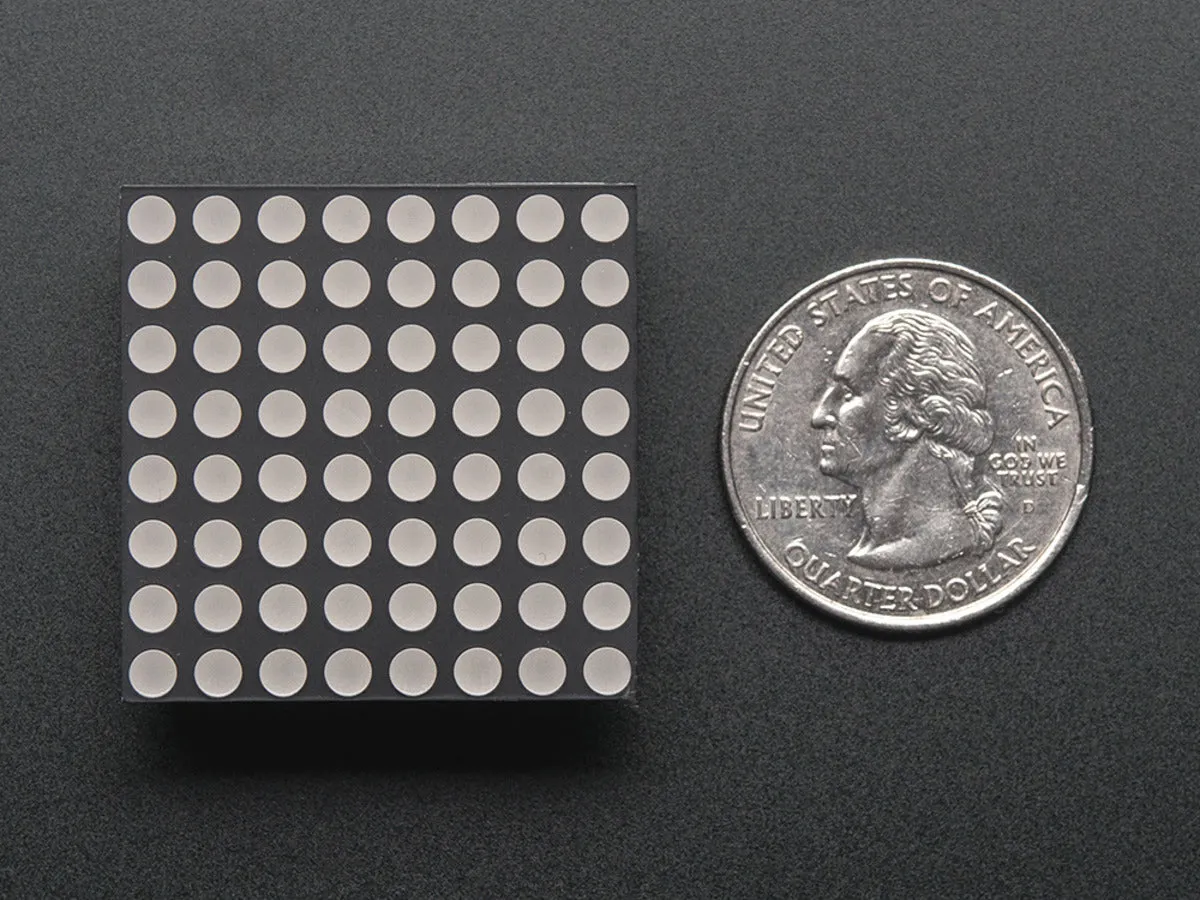

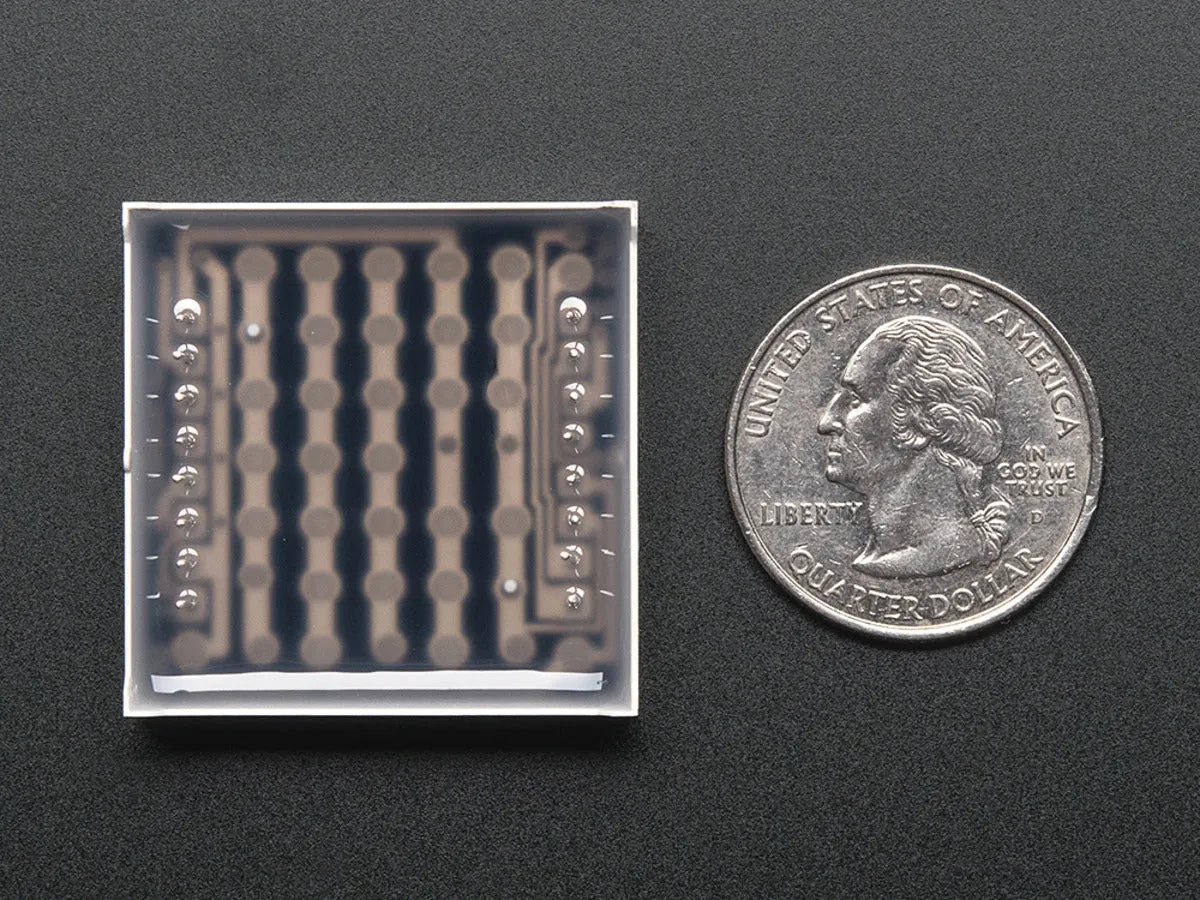

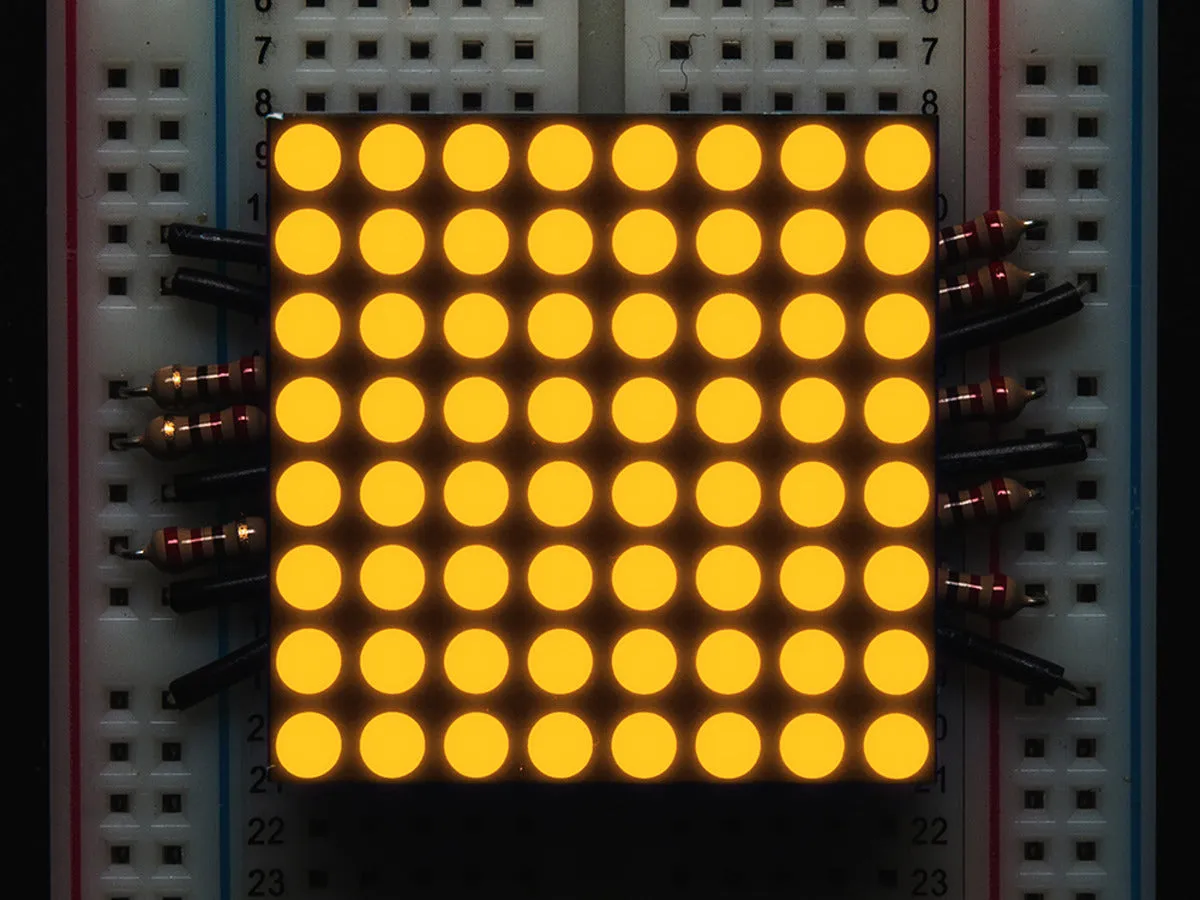

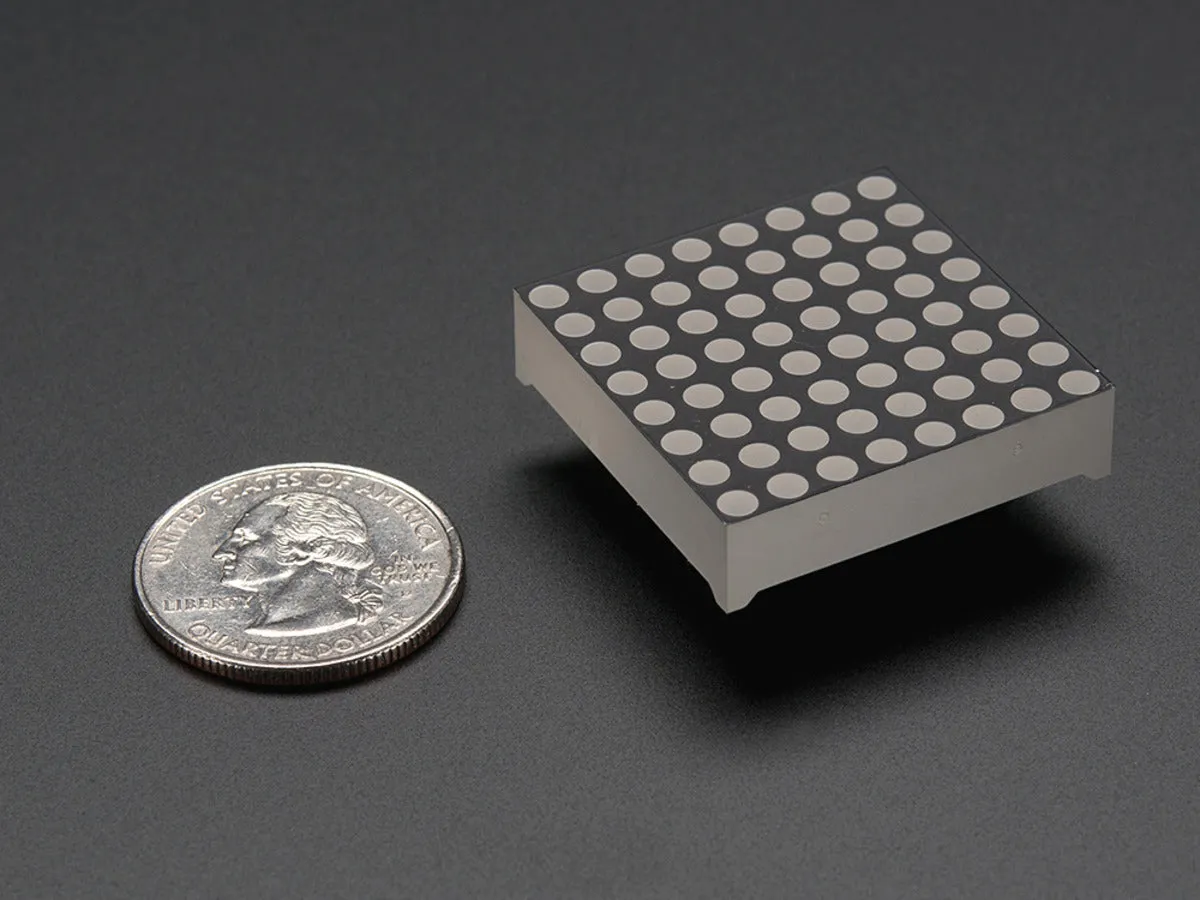

Make a scrolling sign, or a small video display with this 8x8 gridded yellow-orange LED matrix. Only 1.2" on a side, it is quite visible but not so large it won't plug into a breadboard! There are 16 pins on the side, 8 on each, with 0.1" spacing so you can easily plug it into a breadboard with one row on each side for wiring it up.

Since the display is in a grid, you'll need to 1:8 multiplex control it. We suggest either using a and (using the 74HC' to control the 8 anodes at once and then using the TPIC' to drive one cathode at a time) or just using a single which will do the multiplexing work for you.
