Product Details
＋
Please contact [email protected] for a quote and more information.

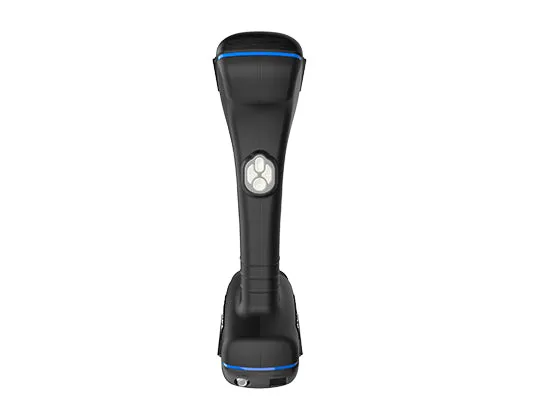

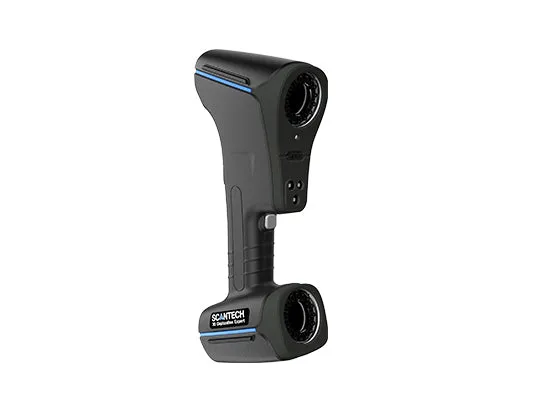

AXE-B11 3D scanner opens up a new 3D experience to large-scale 3D measurement without an extra device.
The 11 crossed blue lasers greatly increase the measurement rate to 1,300,000 measurements/s. And the single blue laser line can rapidly obtain 3D data of deep hole and inaccessible positions of complex objects.
The built-in photogrammetry function can scan large-scale objects with ultra-high accuracy individually (volumetric accuracy up to 0.020 mm/m and accuracy up to 0.020 mm).
| Type | AXE-B11 |
|---|---|
| Laser source | 11 blue laser crosses 1 extra blue laser line |
| Deep hole scanning | Support |
| Accuracy | 0.020 mm |
| Measurement rate | 1,300,000 measurements/s |
| Scanning area | Up to 550 mm × 600 mm |
| Scanning area (photogrammetry) | 2500 mm × 3000 mm |
| Laser class | CLASS Ⅱ（eye-safe） |
| Resolution | 0.025 mm |
| Volumetric accuracy (without extra device) |
0.020 mm 0.035 mm/m |
| Stand-off distance | 450 mm |
| Depth of field | 500 mm |
| Depth of field (photogrammetry) | 2500 mm |
| Output formats | .stl, .ply, .obj, .igs, wrl, .xyz, .dae, .fbx, .ma, .asc or customized |
| Operating temperature range | -10 ~ 40°C |
| Interface mode | USB 3.0 |
| Patents | CN204902790U,CN206905709U,CN107202554,US10309770B2 |
